Product Image Uniview 4-Channel WIFI Camera Kit 1TB HDD NVR Security Surveillance System With 4 Smart IR 2MP Mesh WiFi IP Bullets Cameras - White

Uniview 4-Channel WIFI Camera Kit 1TB HDD NVR Security Surveillance System With 4 Smart IR 2MP Mesh WiFi IP Bullets Cameras - White




This Camera Kit from Uniview includes four 2MP IP bullet cameras with built-in mics and smart IR, along with a high-quality 4-channel NVR with 1 SATA HDD that offers up to 6TB for each HDD and everything you need to install it yourself.

The IPC2122LB-AF40WK-G 2MP cameras offer up to 1920 x 1080 video resolution at 30/25fps. They offer 30m of smart IR for visibility in low-light situations and feature a built-in mic. They are IP67-rated for outdoor use. The Wi-Fi Camera mesh functionality improves the reliability of Wi-Fi connections in large buildings with multiple walls. Independent to your local WLAN, the Wi-Fi NVR has it's own dedicated WLAN for Wi-Fi Cameras, removing any additional burden to your network.

The included 4-channel NVR includes an embedded Wi-Fi Module for high performance and stability.  Free iOS, Android, Windows and Mac apps available with easy free cloud access. The 4-channel NVR supports third-party cameras with ONVIF conformance: Profile S, Profile G, Profile T and RTSP protocols.



  • 1TB hard drive provides at least 28 days of local storage
  • Wi-Fi Cameras support SD cards (up to 128GB) for additional storage support
  • No false alarms using Human Body Detection smart analytics
  • Utilize P2P technology for remote viewing on smartphone and PC
  • No complicated wiring for a clean and fast installation
  • Plug and play option saves time and labor
  • Intruders cannot cut wire because there is none
  • NVR supports simultaneous 1-channel HDMI and 1-channel VGA output with the HDMI at up to 4K (3840×2160) resolution
  • Cameras provide high quality image with 2MP, 1/2.9"CMOS sensor
  • IP67 weatherproof cameras


Camera Specifications

  • High quality image with 2MP, 1/2.9"CMOS sensor
  • 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Built-in Mic
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 128 G Micro SD card
  • IP67 protection
  • 3-Axie
  • Camera sensor: 1/2.9", 2.0 megapixel, progressive scan, CMOS
  • Minimum Illumination: Colour - 0.01 Lux (F2.0 AGC ON), 0 Lux with IR on
  • Adjustment Angle: Pan - 0° to 360°, Tilt - 0° to 90°, Rotate - 0° to 360°
  • Angle of View: 83.7°H, 44.6°V,89.1°O
  • Camera Wi-Fi Frequency Range: 2.4 GHz ~ 2.4835 GHz
  • Camera Operating Temperature: -30°C to +60°C (-22°F to +140°F)


NVR Specifications

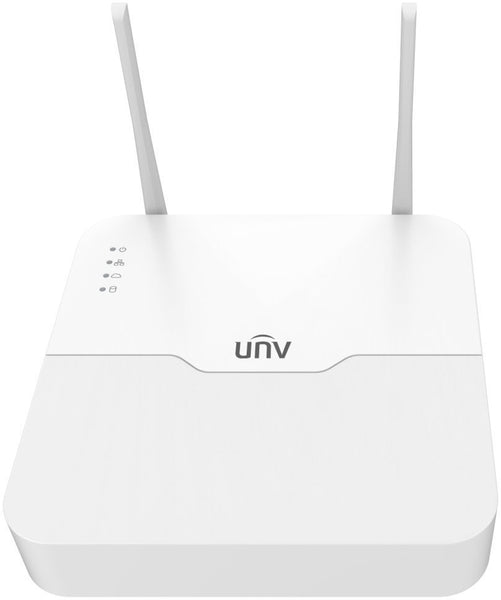

  • Embedded Wi-Fi Module with high-performance and high stability
  • Support CCMP encryption and WPA2-PSK authentication
  • Support IP cameras with WiFi in access
  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  •  Support 1-ch HDMI, 1-ch VGA
  •  HDMI and VGA synchronous outputs provided
  •  Up to 1080P resolution recording
  •  1 SATA HDD, Up to 6TB for each HDD
  •  Support cloud upgrade
  •  Video/Audio Input: IP Video Input: 4-ch Network
  •  Incoming Bandwidth: 40 Mbps
  •  Outgoing Bandwidth: 40 Mbps
  •  Remote Users:128
  •  Recording Resolution: 1080P/960P/720P/D1/2CIF/CIF
  •  Synchronous Playback: 4-ch
  •  Corridor Mode Screen: 3/4
  • Decoding format: Ultra 265/H.265/H.264
  • Liveview/ Playback:  1080P/960P/720P/D1/2CIF/CIF
  • Capability: 4 x 1080P@30
  • HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
  • VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
  • White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
  • Image Setting: Image rotation, brightness, saturation, contrast, sharpness, and gain are adjustable by the web browser
  • Digital noise reduction: 2D/3D DNR
  • Smart IR: Support
  • Flip: Normal/Vertical/Horizontal/180°
  • Defog: Digital Defog



  • Power DC 12V±25%
  • Power consumption: Max 4.0 W
  • Working Environment: -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
  • Dimensions(W×D×H):  172 × 76 ×72 mm (6.8” × 3” × 2.8”)
  • Weight ( without HDD ): 0.25 kg (0.55 lb)
  • Ingress Protection Ingression protection: IP67
