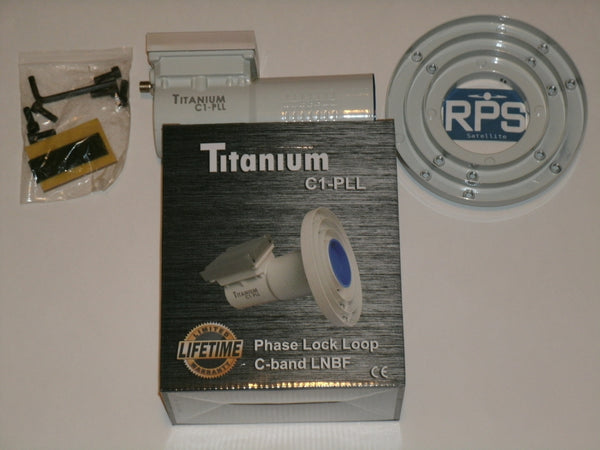

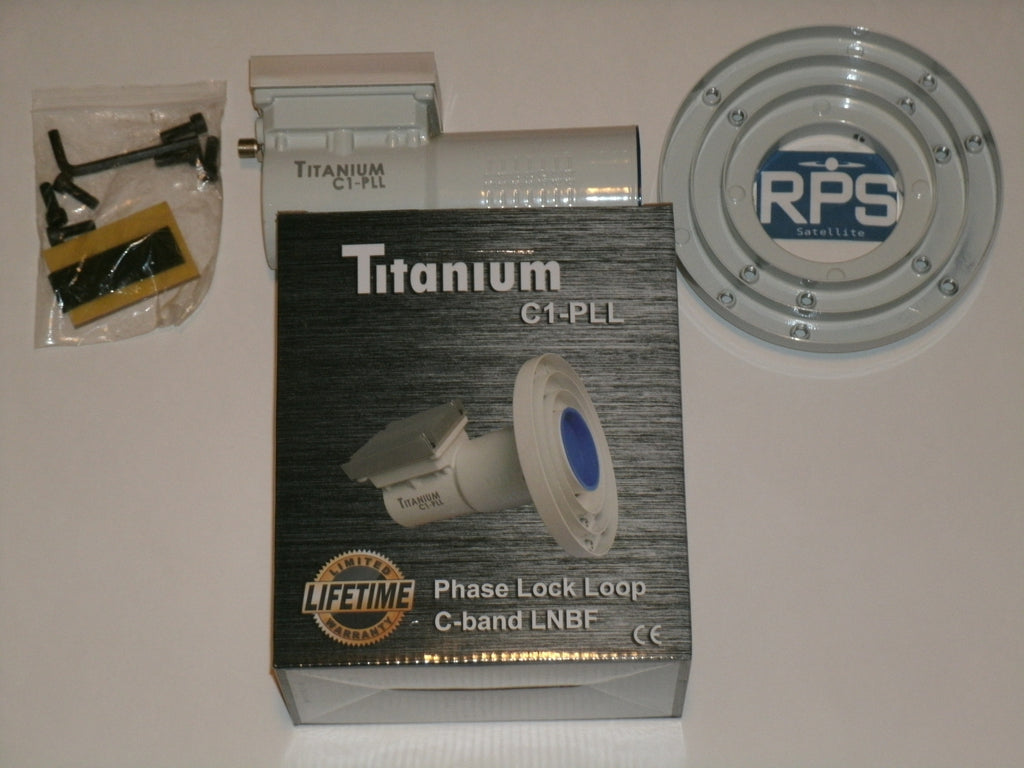

Product Image Titanium Satellite C1-PLL C-band LNBF Single

Titanium Satellite C1-PLL C-band LNBF Single


C-band products in Canada, you can always count on us to bring the latest and greatest products to the Canadian market first.


The C1-PLL Phase Lock Loop C-band LNBF technology provides exceptional reception of weak satellite signals and the most demanding high FEC S2 channels. Designed to meet the requirements for light commercial applications and the most demanding satellite hobbyist, it is cost-effective, high quality and professional grade. The C1-PLL polarity is voltage switched for receiving horizontal / vertical linear or right / left circular (with the included dielectric slab). It includes a flat scaler designed for prime focus dish types and fits the industry standard 68mm scalar mounts and the optional Titanium conical scalar for offset type dishes.

Regular LNBFs typically last only five to seven years. DRO type LNBFs lose performance over time as the mechanically tuned frequency slowly drifts until one day, the receiver is no longer capable of tuning the satellite channels. PLL LNBFs do not rely on a mechanical tuning slug that may shift off frequency due to physical damage or aging. PLL LNBFs have a crystal oscillator that will remain tuned exactly on frequency. The C1-PLL frequency is +/-50KHz and typically the operational drift to be within +/- 10KHz.

The heavy aluminum casting, snow white poly coating and cooling fins assist with keeping the C1PLL operational temperature low and running cool. These thermal control features increase the C1-PLL performance and stability, insuring many years of reliable service.

Titanium Satellite provides a Lifetime Warranty on the C1PLL against frequency drift! If you are not completely satisfied with the performance of the Titanium C1PLL, we will promptly refund your purchase!


C1-PLL Specifications

RF Input 3.7 - 4.2GHz
IF Output 950 - 1450MHz
L.O. Frequency 5150MHz
Noise Figure 15°K (typical)
Gain 65dB (typical)
Stability 50KHz (typical)
Cross Pol Iso 20dB (typical)
Image Rejection 45dB (typical)
Phase Noise -85dBc@10KHz (min)
Polarity Switch V: 11.5 - 14vdc
H: 16 - 20vdc
Input VSWR 2.1:1 (max)
Output VSWR 2.0:1 (max)
Operation Temp -22 to 140°F
Storage Temp -40 to 160°F
