DESCRIPTION

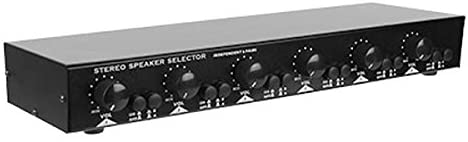

Whether you're a store owner, restaurant owner, or just a raving audiophile, you need a sound system that is easy to operate. The SAG5600HE allows you to operate up to six zones of stereo sound, all from one location. This Dual Source Stereo Speaker Selector from our Saga Elite series is a highly efficient impedance-matching selector designed for use with both 4-ohm or 8-ohm amplifiers and 4-ohm to 8-ohm speakers. It's equipped with a low-frequency protection circuit to reduce subsonic signals, which allows high power operation without amplifier shutdown.
The SAG5600HE allows you to operate up to six zones of stereo sound, all from one location. This Dual Source Stereo Speaker Selector from our Saga Elite series is a highly efficient impedance-matching selector designed for use with both 4-ohm or 8-ohm amplifiers and 4-ohm to 8-ohm speakers.
• Pure Power - The SAG5600HE's ability to protect your gear doesn't at all hinder its ability to power your gear. This speaker selector allows you to connect up to 2 amplifiers and delivers 300 watts total RMS continuous power handling.
• Individual Volume Controls - The front panel features individual volume controls that allow you to control the output level of each independent zone, all from one location.
• Slotted Zone On/Off Buttons - This selector has you covered with its slotted zone on/off buttons. In addition, a front panel button allows switching between two amplifiers for all speakers connected to the unit.
- High-Quality Components - Premium construction provides excellent reliability, precise switching and noise-free volume control.
- Six pairs of speakers can be controlled independently. Any one pair or up to all six pairs can be controlled at the same time or in combination (with a volume control).
- Heavy duty transformer based impedance matching system protects against power loss.
- Circuit breaker protected
- Left and right channels are completely isolated for safe operation with any amplifier, even bridged amplifiers
SPECIFICATIONS
- 900 watts total music power
- 300 watts total RMS continuous power handling
- Quick connect terminals will accommodate 16 to 22 gauge wire
- Can be connected to two separate amplifiers via A/B switch
- Dimensions: 17" (L) x 6" (D) x 2 3/8" (H)
