DESCRIPTION

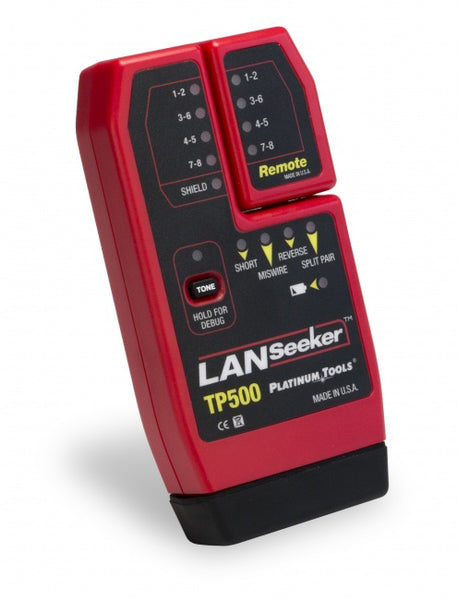

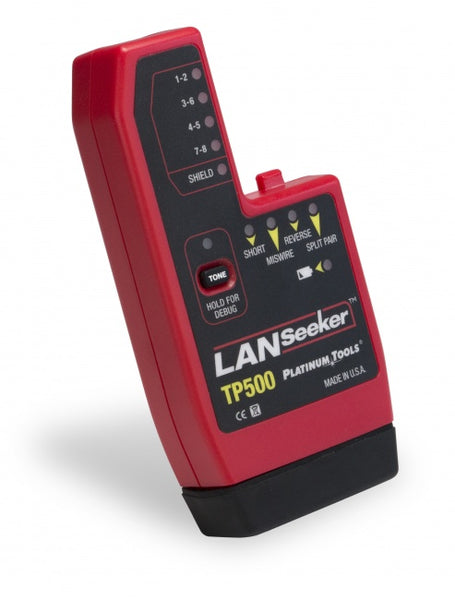

The LANSeeker™ is a fast, rugged cable tester and tone generator in one unit. It displays cable test results using LED indicators on the main and remote unit. An easy-to-use professional grade tool, the LANSeeker is a must have for residential and commercial cable installers. When the unit senses a connection between the main and remote unit, the battery-saving auto-on feature initiates test results within 2 seconds. The tester automatically powers off within 5 seconds of the cable being disconnected. LANSeeker tests for shorts, opens, miswires, reversals, and split pairs and can display connection and fault information on a pair-by-pair basis. It also generates audio tones for use with tone tracers on all pairs.

•
  Displays cable test results on main and remote units in less than 2 seconds
  • Immediately detects shorts by just plugging in one end of a cable to the tester
  • Identifies shorts, opens, miswires, reversed and split pairs
  • No on/off switch, automatically starts test when a connection is sensed between main and remote unit

•
  Debug mode diagnoses and displays faults one pair at a time
  • Includes tone generator

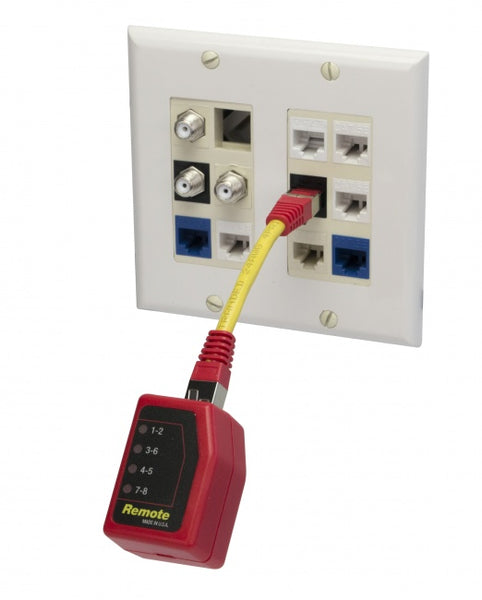

  • Self-stored remote



Battery Life Times are for the full capacity of the battery used continuously in one of the following modes (typical, 9V alkaline, included):
• Standby mode 2.5 hrs
• Cable testing mode 20 hrs
• Tone mode 170 hrs

CABLE TYPE

•
  Shielded or unshielded, CAT3, CAT4, CAT5, CAT5e, and CAT6
  • Minimum cable length for testing split pairs: 1 m (3 ft)
  • Maximum cable length for testing: 305 m (1,000 ft)
  • Coax cable: 100 Ω maximum DC resistance, center conductor plus shield



ENVIRONMENTAL TEMPERATURE

•
  Operating 0 to 50ºC (32 to 122ºF)
  • Storage -20 to 70ºC (-4 to 158ºF)
  •Humidity: 10 to 90%, non-condensing
  •Safety CE – Conformité Européenne
