Product Image Pioneer TS-A2500LS4 10"  Shallow-Mount 1200W Subwoofer

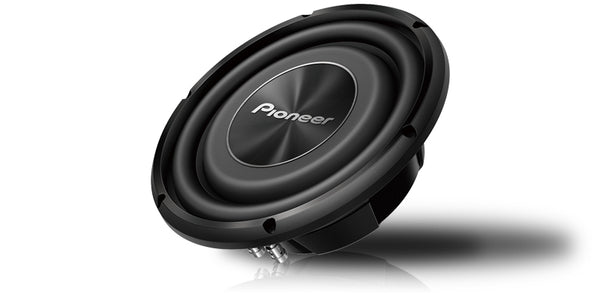

Pioneer TS-A2500LS4 10" Shallow-Mount 1200W Subwoofer




Pioneer TS-A2500LS4 A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

REINFORCED CONE STRUCTURE. The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.

SHALLOW COMPACT DESIGN. Our line of shallow subwoofers are designed to provide wider installation options for a broad range of vehicles. These shallow-mount Pioneer TS-A2500LS4 subwoofers feature multiple patent-pending features to deliver the big bass performance of a full-size subwoofer, but in a compact design that can be installed either behind or under seats depending on the type of vehicle. The mounting depth is just 3-3/8″ – less than half a typical subwoofer in this class.

Discover the Pioneer TS-A Series of shallow component subwoofers. Designed with carefully selected materials to improve bass response, these subwoofers are the perfect match to be used alongside the TS-A Series of speakers. If you are looking for a sound upgrade combined with easy installation, then look no further than the Pioneer TS-A2500LS4.

This 25cm subwoofer is just 8.7cm deep and has an oversized cone that produces louder bass than ever. Boost your car audio with 1200 Watts of pure, superior bass without losing too much space in your car.

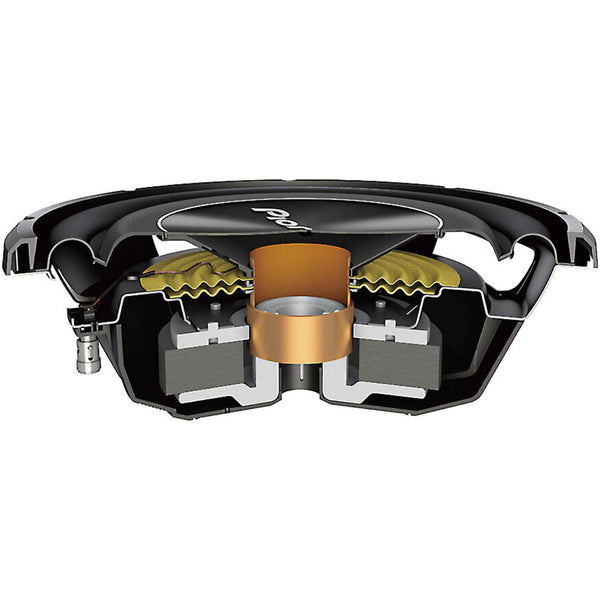

Designed for enclosed use, the Pioneer TS-A2500LS4 is fitted with a single oversized cone structure with double spiders to increase power handling and generate a more accurate, louder bass. The single cone helps keep the overall moving mass down at manageable levels, which is extremely important for efficiency and sound quality reasons.

 A typical sub uses a damper to control the woofer’s cone excursion. Our Pioneer TS-A2500LS4 double spiders are more efficient as they need less power to move the cone while producing superbly detailed and low distortion bass.



  • Size: 10″
  •  Max. Music Power (Nominal): 1,200W (400W)
  •  Frequency Response: 20 Hz to 900Hz
  •  Sensitivity (INPUT: 1W): 85dB
  •  Impedance: 4 Ohms
  •  Mounting Depth: 3-3/8″
  •  Cut-Out Dimensions: 11-1/9″ Dia
  •  Speaker Design: 1-Way
  •  RMS Power: 201 to 400 Watts
  •  Impedance: 4 Ω
  •  Speaker Size: 10″
