Product Image MB Quart RK1-116 Reference Series 6.5" 2-Way Coaxial 200 Watts Speakers

MB Quart RK1-116 Reference Series 6.5" 2-Way Coaxial 200 Watts Speakers

$229.95




DESCRIPTION



  • 6.5″ Reference Coaxial 2-Way speakers engineered with .75″ Titanium dome WideSphere™ Technology Tweeters with lightweight craft pulp Bamboo fiber cones mounted to an inert frame (which adds no harmonic distortions).

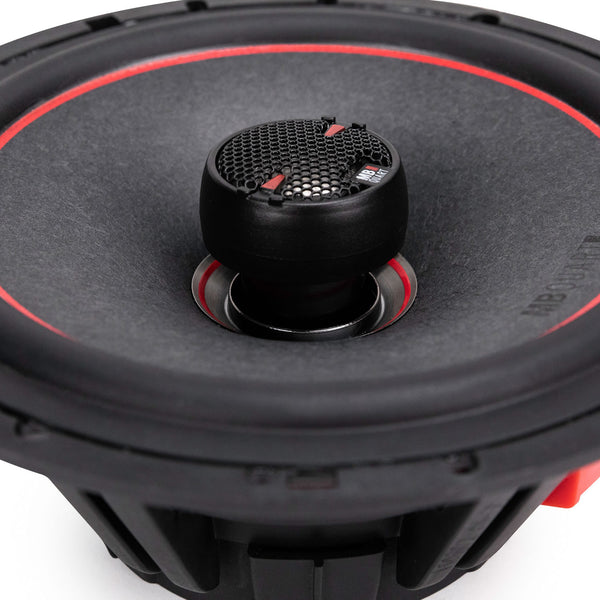

    • Tweeters. .75” titanium dome tweeters utilizing WideSphere™ Technology for exceptional musical reproduction of high frequencies are the heart of the system. The innovative tweeter design develops an off-axis dispersion pattern that creates a larger sound stage which brings a concert in your car to life.
    • Cone Material. The speaker is engineered with a Lightweight Curvilinear craft pulp with bamboo fiber cone. This design adds strength and superior bass frequency reproduction. This means that midrange and bass frequencies remain very musical without the distortions that can be caused by the cone flexing. With the curvilinear design the geometry is specifically engineered for best upper band midrange response which is critical for frequencies that are responsible for vocals and acoustic instruments like piano, guitar and percussion.
    • Surround / Cone Coupling. High temperature adhesives are utilized to keep the coupling from cone to surround fused. Adhesives are also impervious to cold weather.
    • Gasket. Molded Polymer Sealing gaskets are utilized to keep the speaker isolated from the mounting surface and improve protection from water and dust intrusion.
    • Voice Coil / Former Assembly. High temperature imported wire on Kapton former. The former is lighter than a standard speaker which allows the component to support slightly higher frequency extension and efficiency.
    • Spider. Red woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
    • Cooling System. Venting allows air passage through the spider and speaker frame ribs to exchange air over the voice coil.
    • Crossover. Reference coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.
    • Frame. Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.
    • Grills. Included


SPECIFICATIONS



  • Weight 4.5 lbs
  •  Dimensions 16.8 × 7.95 × 3.5 in
  •  Speaker RMS Power Handling (watts): 50/100 Each & System
  •  Speaker Peak Power Handling (watts): 100/200 Each & System
  •  Speaker Impedance (ohms): 4
  •  Speaker Frequency Response: 58Hz-20kHz
  •  Speaker Sensitivity: 88.3dB
  •  Speaker Crossover Slope: 6dB/Octave
  •  Speaker Height (in): 2.91
  •  Speaker Mounting Diameter / Cut Out (in): 5.59
  •  Speaker Outside Diameter (in): 6.57
  •  Speaker Mounting Depth / Chassis Depth (in): 2.8
