DESCRIPTION

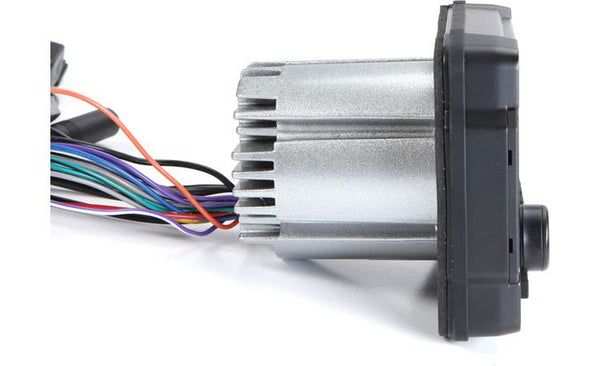

MB Quart OFF-ROAD & Marine Multimedia Source Unit with 160 Watt internal amplifier features AM/FM/Bluetooth..

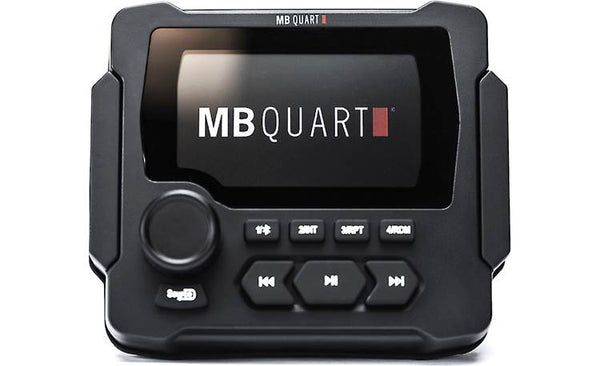

OFF-ROAD & Marine Multimedia Source Unit
160 Watt AM/FM/Bluetooth®, USB, Mobile Entertainment Controller

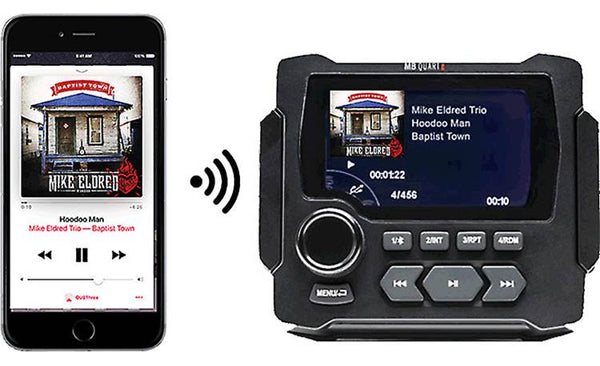

Bluetooth™ Connect & Quick-Pair
Quick and secure pairing of devices with your music library with album art displayed
USB Control
Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple connectivity.

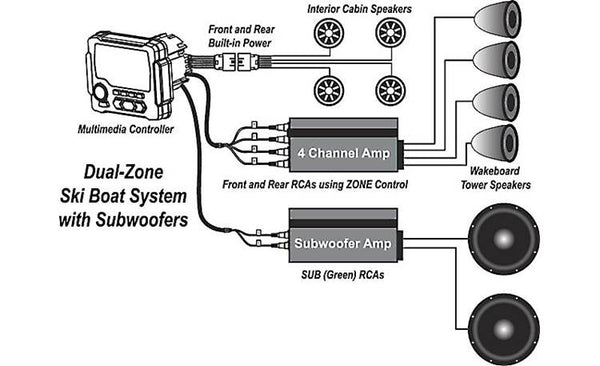

Dual Audio Zone Capability
Control volume in two different areas independently, such as passenger area and tower speakers
Radial Shift UX
Intuitive control navigation with master control and radial menu selection
Maximum Connectivity
Connect external amplifiers for speakers and subwoofers with six channels of connectivity.

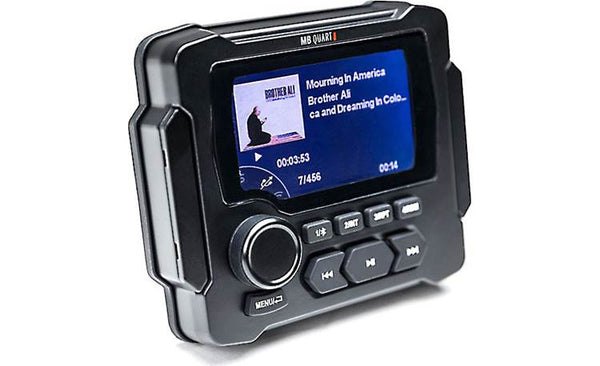

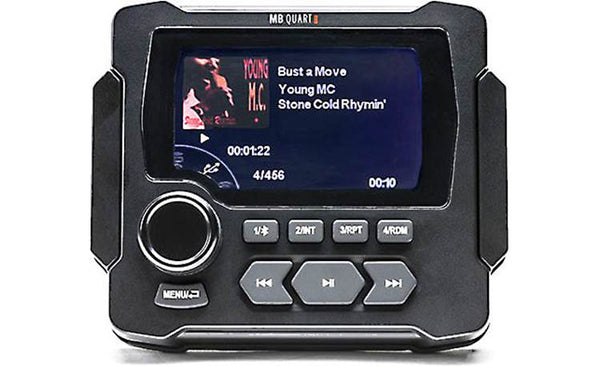

Media Screen
On board 3.5 inch high-contrast LED screen to view media artwork and external camera input
SPECIFICATIONS
- Marine certified to IPX67 with large waterproof buttons :
- RMS Power Output : 4 x 20 Watts
- Peak Power Output : 4 x 40 Watts
- Maximum THD+N at 4 Ohms : 81.2dBA
- Efficiency At Full Power 4 Ohm (1kHz) : 0.639
- Idle Current : 0.3A
- Maximum Undistorted Preamp Voltage (With 20k Ohm Load) : 4 Volts
- Signal to Noise (CTA-2006B) : Bluetooth -76.2 dBA, Aux -86.4dBA
- Signal to Noise Ratio Of Line Level Outputs (At Max Volume) : Bluetooth -76.2 dBA, Aux 86.4dBA
- Preamp Frequency Response (+/- 3.0dB) : Bluetooth 20Hz-20KHz, Aux 20Hz-20KHz
- Amplifier Frequency Response (+/- 3.0dB) : Bluetooth 20Hz-20KHz, Aux 20Hz-20KHz
- Stereo Separation (Aux Input) : -64.1dB @ 5kHz
- FM Mono Usable Sensitivity : 13dBf / 2.5μV
- AM Mono Usable Sensitivity : 15 - 16μV
- Minimum Impedance : 4 Ohms

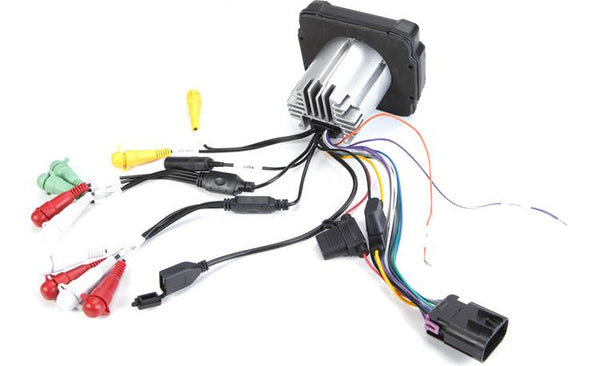

- Pre-amp Outputs : 3 Pair Front/Rear/Subwoofer, 1 CVBS Video Output
- Audio Inputs : 1 Pair (Aux), 1 USB, 1 Composite Video (Camera)
- Display Type : The unit display features a 3.3 inch full color round LED panel

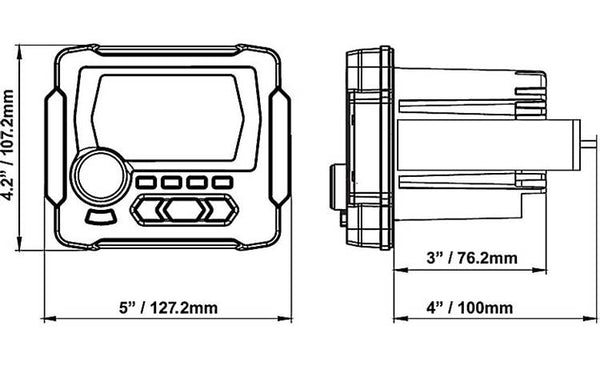

- Unit Dimensions Height : 4.2 inches (107.2mm)
- Unit Dimensions Width : 5 inches (127.2mm)
- Unit Dimensions Depth From Face : 4 inches (99.7mm)
- Unit Dimensions Total Mounting Depth : TBD
- Dimensions Mounting Hole : 3.12 inches (7.93 cm)
- Dimensions Mounting Depth : 2.87 inches (7.30 cm)

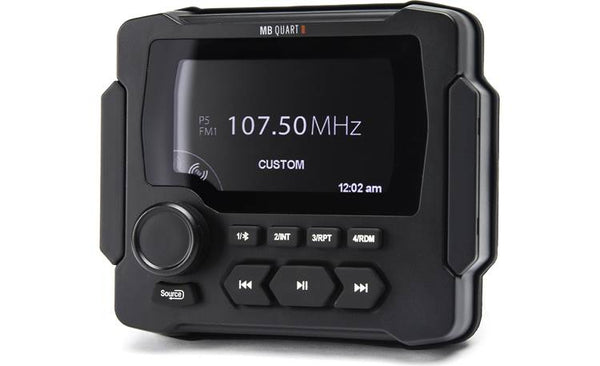

- Tuner Section FM Stereo Frequency Range : 87.5MHz-108MHz
- Tuner Section Signal to Noise Ratio : >55dB
- Bluetooth Range : 32 Feet (10 Meters)
- Output Voltage : 2V Single Ended (4V)
