Product Image LigoWave DLB-5-90-20-PRO 5-GHZ 2X2 MIMO Base Station With Integrated Dual Polarized Antenna

LigoWave DLB-5-90-20-PRO 5-GHZ 2X2 MIMO Base Station With Integrated Dual Polarized Antenna

$226.00


DESCRIPTION



The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI. The metal enclosure also works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower. Apart from RF shielding the metal housing works as a heatsink, allowing better RF performance by dissipating the heat generated by the radio.
• Based on a QCA 9557 chipset (720 MHz) and 128 MBytes of RAM/Flash memory the LigoDLB PRO series access points are an ideal solution for resource demanding installations with a high number of clients connected to a single AP
• The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI.
• Metal enclosure works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower.

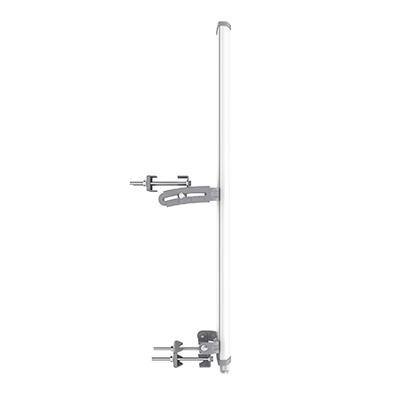

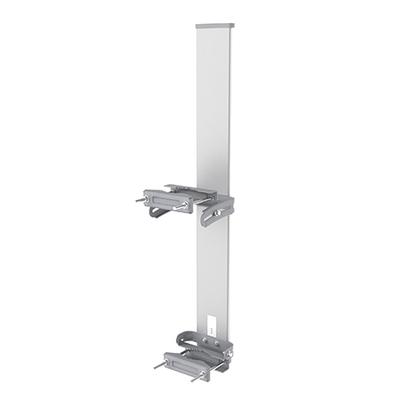

• The LigoDLB PRO mounting bracket allows 15 Deg down-tilt when doing antenna alignment.
• LigoDLB's operating system includes all the essential features for point-to-multipoint networks
• LigoWave's iPoll PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations.
• WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for the network administrator.



SPECIFICATIONS



  • Radio Frequency: 5.150 - 5.850 GHz
  •  Channel size 5, 10, 20, 40 MHz
  •  Stream MIMO 2x2
  •  Wireless protocol Proprietary iPoll 3 or standard 802.11n
  •  Operating mode Point to Multi Point Max output power 30 dBm*
  •  Receive sensitivity at 20 MHz channel: -97 dBm +/-2dB@BPSK -91 dBm +/-2dB@QPSK -79 dBm +/-2dB@16QAM -76 dBm +/-2dB@64QAM
  • Network Ethernet interface 10/100/1000 Base-T
  •  Aggregated data throughput 180 Mbps
  •  Antenna Gain: 20 dBi
  •  Beamwidth horizontal: 90 deg, vertical: 12 deg
  •  Tilting +15 degrees
  •  Powering Method 802.3af
  •  Box Contents: Sector Antenna - POE Cable - Install Guide - Mounting hardware
