DESCRIPTION

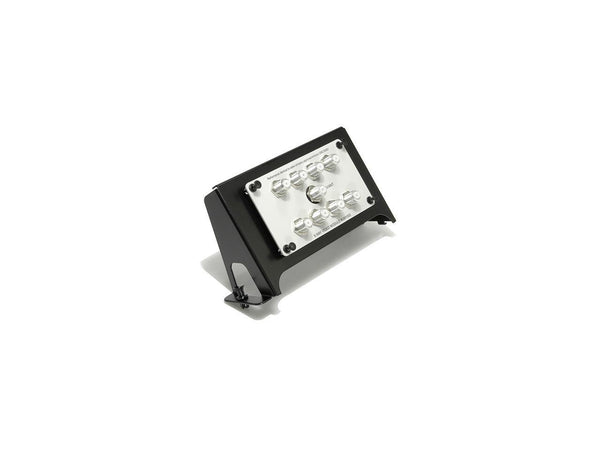

High-performance splitter designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet.

• APPLICATION SECTOR: Residential

SPECIFICATIONS

• Ideal for use with digital cable TV or antenna.
•  Bracket included.
•  DC passing between all ports.
•  Uses standard F type connectors.
•  Handles up to eight outputs and one input.
•  1 GHz Bandwidth.
•  Standard: RoHS
•  Additional Information
•  RoHS Conformant: Yes (This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863)
•  Insertion Loss: 11.1 dB
•  Isolation: 5-14 MHz: 25dB. 14-40 MHz: 40dB. 40-200 MHz: 35dB. 200-550 MHz: 28dB. 550-750 MHz: 26dB. 750-1000MHz: 24dB.
•  Input: 1
•  Impedance: 75 ohms
•  Return Loss: 23.1 dB
•  Number of Ways: 8
•  Output: 8
•  Connector: Coaxial
•  Temperature Rating: -40 F to 140 F
