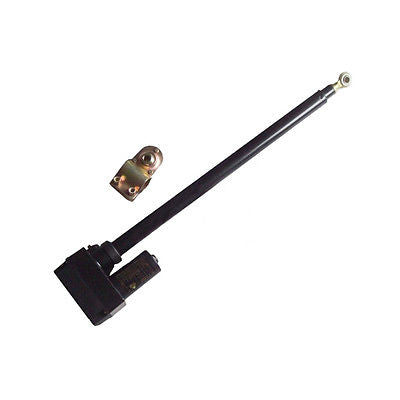

The Venture Mini-T actuator does the job for your smaller light-weight dishes.
1.5 inch tube, 18" arm, 600 lb Load, 6' ft -7.5' ft Suggested dish size
- Standard stroke 18 "
- 30% duty cycle motor rating
- Limit switches
- Reed, Hall Effect, Potentiometer and other sensor options
- 3000 lb static capacity / 250 lb dynamic compression or tension
- Lifetime lubrication
- Designed for outdoor use
- Compression or tension loads
- Trunnion, Clevis, or Tube clamp mounting
- High strength steel tube assembly with all-steel load support members
- Long Life Acme Screw
- 12VDC, 24VDC, 36VDC, 90VDC, or 120VAC Rectified to 120VDC Gearbox Design
