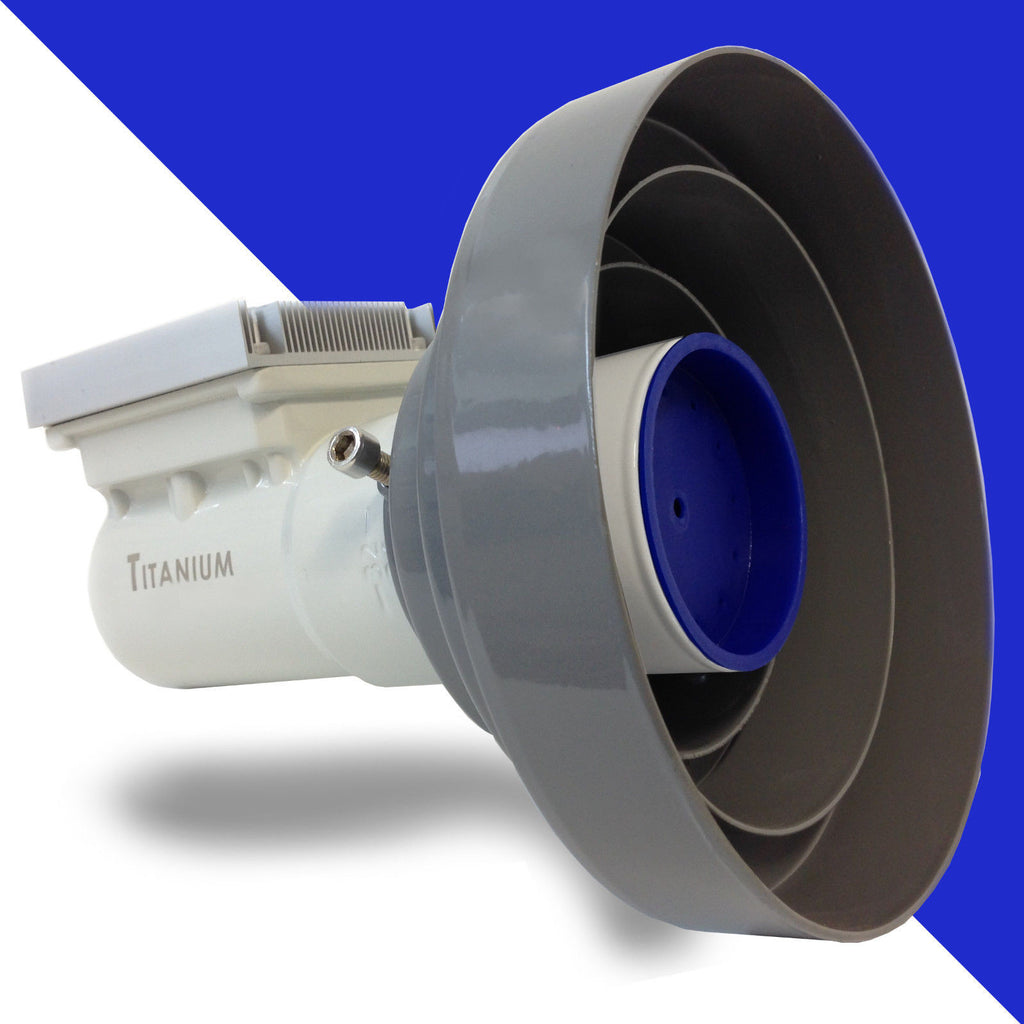

Product Image C-band Canada Bundle LNBF & Conical Scalar Ring Combo Kit

C-band Canada Bundle LNBF & Conical Scalar Ring Combo Kit

$69.00


C-band Canadian offset bundle. Included one C-band lnbf, single or dual output (available from drop down menu). Please search specific lnbf part number on our website if you would like to see the full specs.

LNBF's available:

C1-PLL

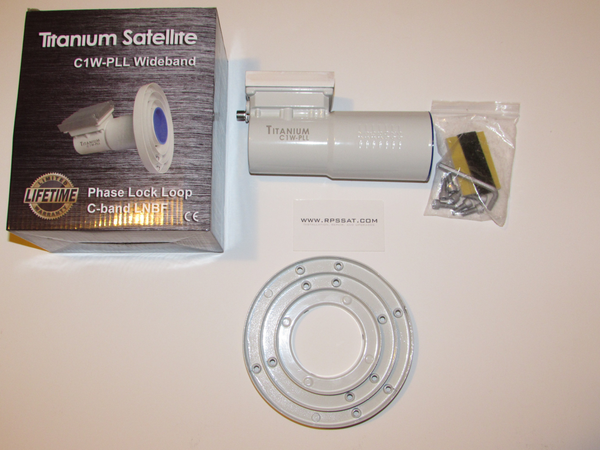

C1W-PLL

C2W-PLL

CS1 Conical Scalar Ring Kit
Perfect for Offset Dishes .5 - .8 FD


Looking for the ultimate performance from your satellite dish? The Titanium Satellite CS1  Conical Scalar is designed to optimize signal collection on offset dishes with a .5 - .8 FD. Mounts on any offset 90cm microBUD, 1.2m miniBUD, 1.8m, 2.4m, 3m or larger offset dish.

The cool grey color poly coating will look great for many years of reliable performance. The scalar securely attaches to any standard C-band feedhorn with three bright zinc coated 5mm Allen head screws. The included Allen key tool allows easily and precise adjustment to provide the exact reflector illumination. Under or over illumination of the reflector surface can severely degrade the signal quality readings and result in poor or no satellite reception. Under illuminate the reflector and you are only catching a percentage of the signals reflecting off of the reflector surface. Over illuminate and terrestrial interference or off-axis / adjacent satellite signals may be directed into the feedhorn.

A universal poly 50 - 68mm feed horn clamp and hardware is included for mounting the feedhorn / LNBF on many brands and models of offset dishes. Options for bottom or side mounting holes are provided for attachment to the many varied feed support arm designs. While we cannot guarantee that the universal clamp will fit on every dish design, it provides a secure grip and can be easily adapted with minimal fabrication to meet unique mounting requirements.

The Titanium Satellite CS1 is quality built using only the highest grade materials to ensure performance and reliable operation. All Titanium Satellite products are inspected by an independent third party for manufacturing and specification compliance. If a product does not meet our Grade "A" requirement, it is either retooled for compliance or discarded. Unlike other brands, there are no "B" stock or secondary markets for Titanium Satellite products.

Titanium Satellite looks forward to providing you with excellent products and exceptional customer support!

CS1 Kit Contains:
  • Conical Scalar with Upgraded Hardware
  • Allen Head Screws and Tool
  • Universal 50 - 65mm Feedhorn Clamp



CS1 Specifications

Dish Compatibility RX - Offset Type
Feedhorn Diameter 2-2 5/8in / 50-68.5mm
Scalar Height 6 1/4in / 158mm
Scalar Depth 3 3/8in / 84mm
Focal Distance .5 - .8
Weight (net) 11oz / .3kg
Weight (gross) 14oz / .4kg
Casting Aluminum
Finish Grey - UV Resistant Poly

Accessories
Universal Mount 68mm Feedhorn
Allen Head Screws 5mm x 3
Allen Head Tool 5mm
