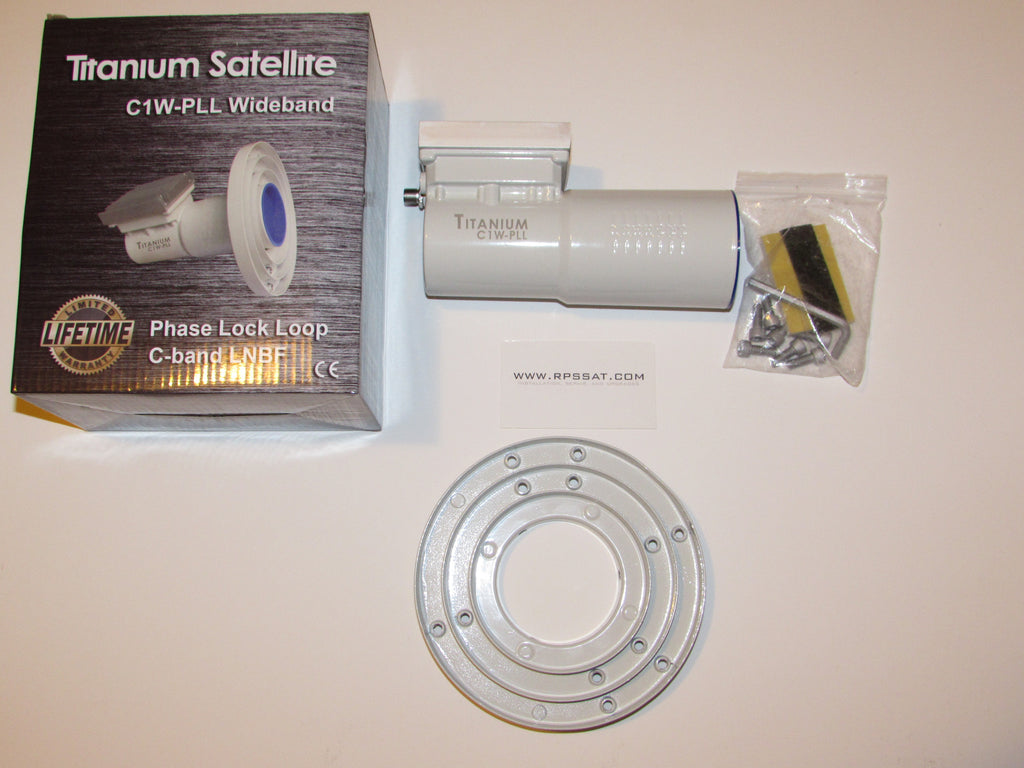

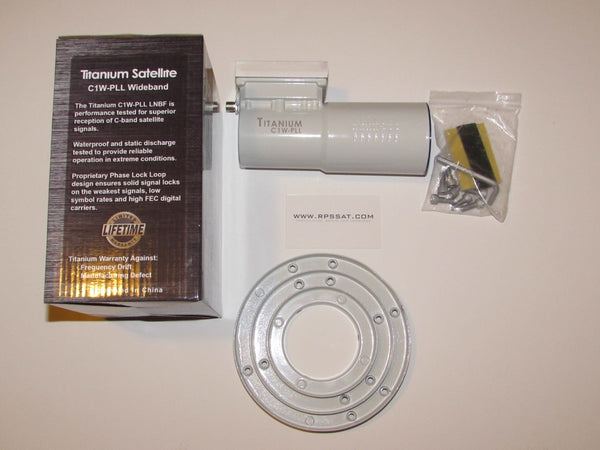

Product Image Titanium Satellite C1W-PLL C-band LNBF Single

Titanium Satellite C1W-PLL C-band LNBF Single

$69.99


RPS Satellite is your source for the latest and greatest, not just in Canada but around the world.



Important Notice: Need to filter out interference caused by WiMAX, 4G LTE and wide area WiFi? See our popular Titanium Satellite C1-PLL ® model with soft attenuation from 3.6-3.7GHz and hard elimination filter below 3.6GHz.








The C1W-PLL polarity is voltage switched for receiving horizontal / vertical linear or right / left circular (with the included dielectric slab). It includes a flat scaler designed for prime focus dish types and fits the industry standard 68mm scalar mounts and the optional Titanium conical scalar for offset type dishes.

Regular DRO type LNBFs lose performance over time as the mechanically tuned frequency slowly drifts until one day, the receiver is no longer capable of tuning the satellite channels. PLL LNBFs do not rely on a mechanical tuning slug that may shift off frequency due to physical damage or aging. PLL LNBFs have a crystal oscillator that will remain tuned exactly on frequency. The C1W-PLL frequency is +/-50KHz and typically the operational drift to be within +/- 10KHz.

The heavy aluminum casting, snow white poly coating and cooling fins assist with keeping the C1WPLL operational temperature low and running cool. These thermal control features increase the C1W-PLL performance and stability, insuring many years of reliable service.

Titanium Satellite provides a Lifetime Warranty on the C1WPLL against frequency drift! If you are not completely satisfied with the performance of the Titanium C1WPLL, we will promptly refund your purchase!

Notice: Titanium Satellite is the developer of the world's first PLL LNBFs. Don't be fooled by imitations, clones and copycats with their inferior performance. These copied products may carry our registered trademark C1 PLL and C2 PLL model names, but they are not the original Titanium Satellite products and are not licensed or authorized by Titanium Satellite for production or distribution. C1-PLL and C2-PLL LNBFs not displaying the Titanium Satellite mark infringe on our intellectual development, trademarks and proprietary designs. If you have been fooled into buying a C-band PLL clone, please immediately contact us and we will let you know how easy it is to exchange it for a genuine Titanium Satellite PLL product.



C1W-PLL Wideband LNBF Specifications

Number of Outputs 1
RF Input 3.4 - 4.2GHz
IF Output 950 - 1750MHz
L.O. Frequency 5150MHz
Noise Figure 15°K (typical)
Gain 65dB (typical)
Stability 50KHz (typical)
Cross Pol Iso 20dB (typical)
Image Rejection 45dB (typical)
Phase Noise -85dBc@10KHz (min)
Polarity Switch V: 11.5 - 14vdc
H: 16 - 20vdc
Input VSWR 2.1:1 (max)
Output VSWR 2.0:1 (max)
Operation Temp -22 to 140°F
Storage Temp -40 to 160°F
