IMPORTANT:
Please check VESA (mounting holes behind YOUR TV), stud spacing, possible blocked cable/input and TV weight prior to making purchase decision to determine whether this TV wall mount fits your TV and the installation application.
Description:

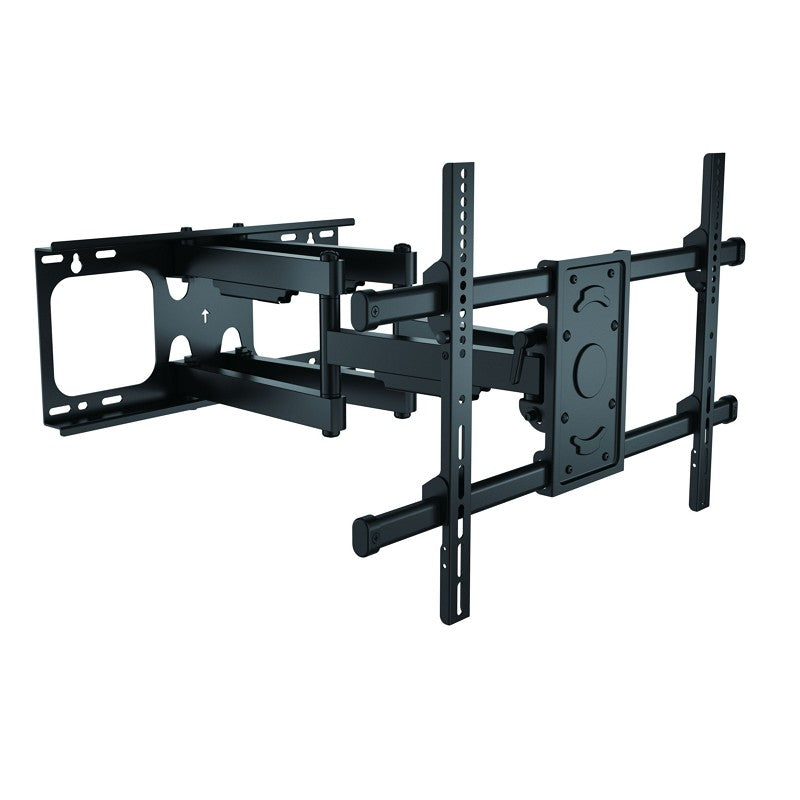

The new solid large full motion mount is constructed with high gauge steel that designed for most 37"-70" flat panel TVs up to 65kg/143lbs. This mount allows you to have your flat panel TV tilted for glare control or optimum viewing angle, pulled out from the wall (635mm extension) and angled towards a separate viewing area. This pre-assembled arm comes complete with integrated cable management and decorative covers to ensure an elegant and tidy look.
Features
●Swiveling arm(s) offer(s) maximum viewing flexibility
●Built-in level adjustment ensures perfect positioning
●Cable management keeps everything organized
●Free-tilting design for multiple monitor viewing angles
●Quick-release latch locks/unlocks the display in place
| Product Name: | TV wall mount |
| By Rank: | Economy Series |
| By Function: | Full motion |
| By Mounting Pattern: | Universal |
| Material: | Steel |
| Surface Finish: | Powder coating |
| Available Color: | Black |
| Product Size With Open Position: | 635*685*430mm (25"*27"*16.9") |
| Fit Screen Size: | 37"-70" |
| Installation: | Solid wall, Double Stud |
| Rated Load: | 65kg (143lbs) |
| Strength tested: | 4 times approved |
| Max.Hole Pattern: | 616*410mm |
| VESA: | 200x200;400x200;300x300;400x400;600x400 |
| Tilt: | ＋5°～-15° |
| Swivel: | +60°~-60° |
| Level Adjustment: | +3°~-3° |
| Rotating: | / |
| Profile: | 69-635mm (2.7"-25") |
| Bubble Level: | Yes |
| Bubble Level mount: | Accessory |
| Anti-theft: | No |
| Cable Management: | Yes |
| Wall separated: | No |
| Panel separated: | Yes |
| AV Component Mount: | No |
| Freely Tilting: | Yes |
| Freely Height Adjustable: | No |
| Motorized: | No |
| Curved TV Available: | YES |
| Certification: | GS UL |
| Patent: | ZL201530063875.1 |
| User Manual : | Yes |
