Product Image Edision mio 4K UHD HEVC h.265 DVB-S2X FTA STB E2 OS Linux Grey

Edision mio 4K UHD HEVC h.265 DVB-S2X FTA STB E2 OS Linux Grey


For years Canadian's have put there trust in the hands of RPS to find the best products out there for hobbyists, satellite enthusiasts and the average big dish user and or satellite nut.

Well we have searched far and wide and have found what we believe to be one of the best 4K FTA receivers out there, and we brought it home to you.

Introducing the Edision 4K Mio, your satellite world has just changed... Forever.

Each receiver comes pre-loaded with the The North American Project (SatDreamG​R mod) Mad props and Nuff respect to all the party's involved with this project that has not only evolved the North American FTA satellite industry by a mile stone, but has just brought us all into the new age of satellite tv. Thanks guys.



Built using the highest quality hardware and with the industry leading design and innovation that the Edision brand is internationally recognized to represent!

This is not your Daddy's set-top box! Industry leading 64 bit Dual Core ARM at 1.5 GHz running E2 OS is loaded with functions and features not found on most STBs. E2 OS is Open Source based on Linux, which means that users like you are constantly expanding and improving with functions and features. E2 OS has many user options not found in a typical closed source satellite receiver appliance. Once you get the hang of the incredible depth of user options, you will never look back. Most installation and management parameters are user adjustable and the downloadable plugins, extensions and skins make E2 OS STBs a media center dream!

Recent developments in the Blind Scan plugin are revolutionizing the accuracy, speed and reporting functions. Using the North American Project mod of SatDream image, a complete accurate hardware based blind scan and channel logging of 97w KU-band takes approx. 2 minutes. A Blind Scan of 105w C-band takes less than 5 minutes and logs approx. 2500 TV and radio stations! The scanning screen reports the scan time and number of TV / Radio stations logged. Want to generate a list of transponders and/or services found to share with friends or an online list? The scan report files can be saved to an external USB for review or sharing.

EDISION OS MIO 4K S2X is the new E2 LINUX 4Κ UHD, DVB-S2X combo receiver in the E2 LINUX range of EDISION receivers. Features 4K UHD resolution and Multi-Stream T2MI Tuner & hardware Blindscan. Equipped with a variety of the most advanced features in order to provide you with an exciting use of all its top characteristics, all in a compact and slim design! ATSC USB tuners can be added for viewing and DVR with EPG! The popular Hauppauge USB ATSC OTA tuner models 850, 855, 950, 955, XboxOne are supported. The DVBS2 TBS5925 USB tuners are supported for multi-tuner satellite operation.

The OS mio 4k is housed in an elegant aluminum case with features that include: E2 Linux operating system, DVB-S2X and DVB-T2/C Τuners, 4K UHD resolution, MultiStream T2MI Tuner, Exceptional Blindscan, 4 slot multiboot, Web browser and HbbTV support, Dual Core ARM at 1.5 GHz / 64 bit processor, 8GB eMMC/RAM 2GB DDR4 2400Mhz flash memory, WiFi with two (2) external, detachable WiFi antennas (included), Bluetooth v4.0 on Board, 4K UHD Multimedia Player plus the exceptional and ergonomic aluminum IR remote control UNIVERSAL 2-in-1. All these combined with the overall EDISION quality and professional support, make it a superior option for you to enjoy!

Important Notice: We provide technical support for the pre-loaded Enigma 2 image, The North America Project modded SatDreamGR . You may install up to 4 images in multiboot mode and switch between images by simply selecting a different multiboot image and restarting the STB!




Technical features:

  • Type: 4K UHD E2 Linux Combo Receiver DVB-S2X + DVB-T2/C with Multi Stream Support
  • 1 x Tuner DVB-S2X
  • 1 x Tuner DVB-T2/C (Please Note: The built-in tuner is not compatible with North American ATSC OTA or Cable TV standards)
  • Supports Multiple ATSC USB Tuners - Hauppauge models 850, 855, 950, 955 with EPG!
  • Supports DVBS2 USB Tuners - TBS5925
  • Decoding: H.265/HEVC Decoding Support (covered by: listepatentlist.hevcadvance.com)
  • Normal FECFRAME (64800 bits) Symbol Rates:
    QPSK 1- 60 MSps
    8PSK 1- 60 MSps
    16APSK 1- 58 MSps
    32APSK 1- 55 MSps
    64APSK 1- 34 MSps
  • Short FECFRAME (16200 bits) Symbol Rates:
    QPSK 1- 56 MSps
    8PSK 1- 55 MSps
    16APSK 1- 51 MSps
    32APSK 1- 45 MSps
  • CCM /VCM / ACM
  • Multi Stream T2MI & Blind Scan
  • Interactive Services Profile Support
  • Linux Operational System (Enigma 2)
  • Processor: Dual Core ARM 1.5 GHz / 64 bit
  • FLASH 8GB eMMC / RAM 2GB DDR4 2400Mhz
  • 4K UHD Multimedia Player
  • Web Browser & HbbTV Support
  • Free Internet Streaming TV and Radio
  • Dual Band 2x2 Wi-Fi 802.11ac 5G / 2.4G with MU-MIMO
  • 2 x Pluggable Wi-Fi Antennas
  • Bluetooth: Embedded v2.1 / 3.0 / 4.0
  • Unlimited Channel Memory
  • Hyper-Sensitive Tuners for Weak Signal Reception and Exceptional Blind Scan
  • 1 x Smartcard Reader
  • 10/100 Mbps Ethernet Interface
  • 2 x USB2.0 Ports
  • 1 x HDMI 2.0a Connection
  • 1 x Jack to RS232
  • 1 x Jack to IR
  • 1 x S/PDIF
  • Channel Change less than 1 Second
  • Extensive ΕPG and Programmed Viewing via EPG
  • Expandable Add-Ons & Plug-Ins
  • Supports Bouquet List
  • Multilingual OSD, Skin Support
  • Channel Search: Fully Automatic / Manual / Hardware Blindscan
  • Time Shift Function and Multi Timers
  • Supports Teletext & and OSD and VBI subtitles
  • Compatible with 22KHz, DiSEqC 1.0, 1,1 ,1.2 and USALS
  • Supports SCR / CSS (EN50494 & EN50607)
  • Power Consumption Less Than 0.5 Watt, in Low-Power Stand-By


Front Panel:

  • Display: LED (Standby, Recording)
  • Display Buttons: Power, Channel -/+


Back Panel:

  • Input Sat-IF: 1x F-type
  • Input RF: 1x IEC-type
  • Connection TV: 1x HDMI
  • Video output: 1x HDMI
  • Audio output: Standard optical (S/PDIF) / HDMI
  • 2 x WiFi Antennas
  • 1 x Smartcard Slot
  • 1 x Ethernet Plug
  • 1 x jack to RS232
  • 1 x jack to IR
  • 1 x DC In (External PSU)

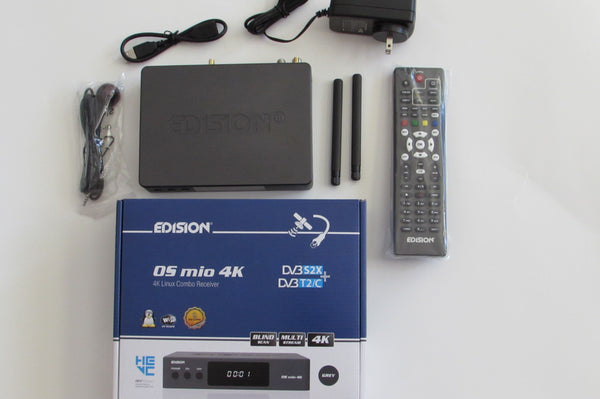

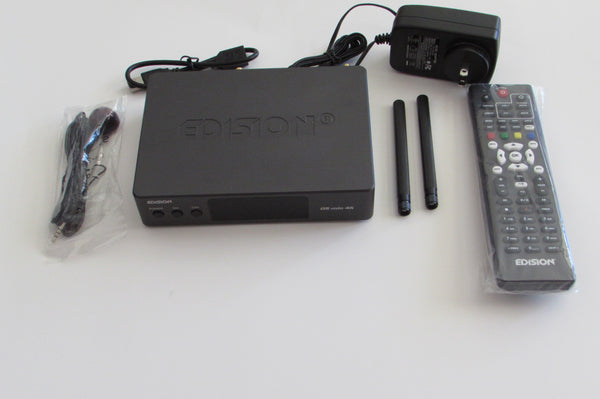

Package contains:

  • Universal Remote Control 2 in 1
  • External PSU 12v with NA plug Adapter
  • Jack to IR Cable
  • USB Extension Cable
  • 2 x Wi-Fi Antennas
  • 2 x "ΑΑΑ" Batteries
  • Simple Start Guide EN/DE/GR



  • Case: Aluminum
  • Case Dimensions: (WxHxD): 7.1 x 1.6 x 5.5 inches (180 x 40 x 140mm
  • Case Weight: 1.5lbs (0.7 kg)
  • Case Color: Grey
  • Warranty: 2 Years
