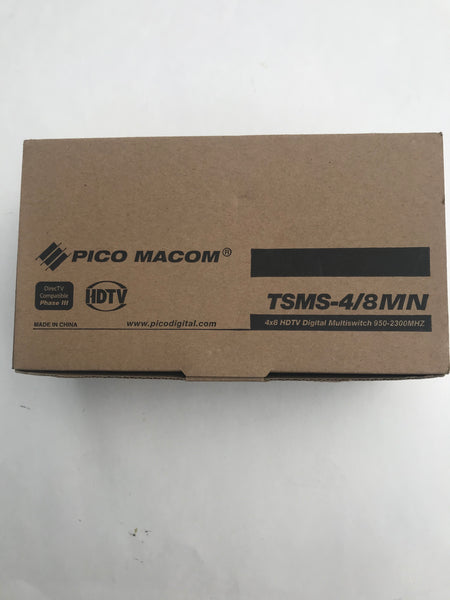

Product Image Pico Macom 4x8 Satellite Multiswitch 4 X 8 MULTI-SWITCH FOR SHAW DIRECT

Pico Macom 4x8 Satellite Multiswitch 4 X 8 MULTI-SWITCH FOR SHAW DIRECT


  • This multiswitch allows you to connect up to 8 Shaw Direct single tuner receivers, or 4 dual tuners, or a mix of the two

    Tech specs
    • 950-2300MHz
    • F Female Connections
    • 40db LNB to LNB Isolation
    • 40db Output to Output Isolation
    • 40db Cross Polarization

    Box Contents
    • Multiswitch
    • Power Supply

This 4/8 multiswitch features 4 inputs for Shaw XKU LNBF and 8 outputs


  • Wideband frequency range 40 up to 2300MHz High performance SMD multi-layered printed-circuit board design ensures high port-to-port isolation to provide spurious carrier protection and to minimize undesired channel interaction, reducing picture distortion
  • High output return loss ports specifically designed for MDU networks and multiple subscriber applications reduce micro reflections, improves data recovery and lowers harmonic distortions
  • Simple F-type connector interface design provides satellite and antenna signals to be routed to 4 or 8 outputs
  • High-performance PIN diode matrix reduces polarity transfer time and digital artifacts providing consistent picture quality
  • Antenna signal combines with satellite on output (some models), eliminating external combining, reducing cost and clutter
  • Compatible with Direct to Home satellite services providing voltage and tone switching for polarity selection
