DESCRIPTION

(DIY CAMERA KIT )

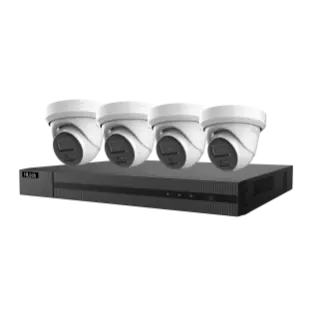

Hikvision IK-4284TH-MH/PH/P ColorVu KIT provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.

 Features:

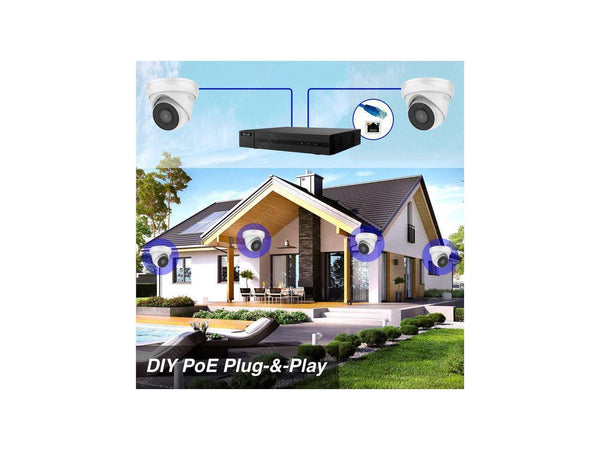

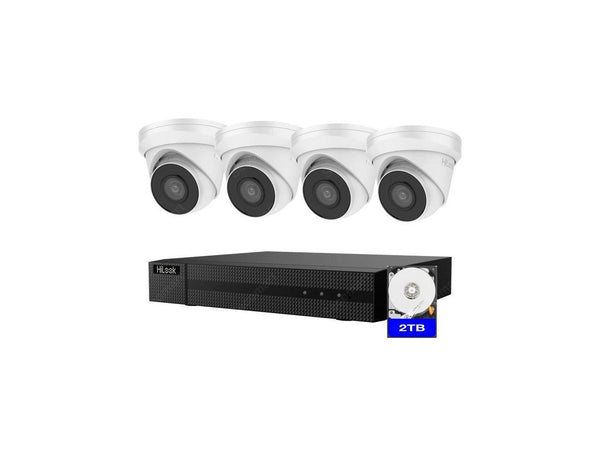

•  One 8-channel PoE NVR with decoding up to 6-ch@1080p
• Four 4MP fixed turret ColorVu cameras with 2.8 mm fixed focal lens - horizontal FOV: 113° vertical FOV: 62° diagonal FOV: 137°
• 24/7 colorful imaging with F1.0 aperture and 0.001 Lux illumination
• 2 TB pre-installed HDD
• Water and dust resistant (IP67)
• IP67 rated with -30 °C to 60 °C (-22 °F to 140 °F) operating and storage conditions

Camera Specifications

•  Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Linkage Method Upload to FTP, notify surveillance center, send email, trigger capture
• Camera Material Metal & Plastic
• Camera Dimension Ø112 mm × 88.4 mm (Ø4.41" × 3.48")
• Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Camera Weight Approx. 370 g (0.8 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version V5.5.123

NVR Specifications

• Power supply 48 VDC, 2.5 A
• Consumption (without HDD and PoE off) ≤ 15 W
• Working temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity 10% to 90%
• Dimension (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
• IP video input 8-ch
• Up to 8 MP resolution
