Product Image Chaparral PR1E Adjustable scalar feedhorn & Dielectric Plate for Circular c-band

Chaparral PR1E Adjustable scalar feedhorn & Dielectric Plate for Circular c-band

$173.00


Chaparral PR1E - Adjustable scalar feed horn with servo motor & Dielectric plate for circular c-band reception.

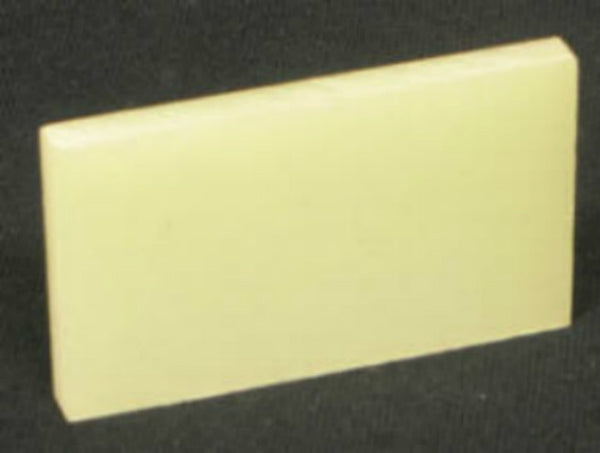

Simply slide the Dielectric Teflon slab into the feed throat to receive Circular c-band, please note that using the included plate you will no longer receive Linear signals.

Specification

Part Number 11-4221-1 with elbow
11-6870-62 without elbow
Frequency Range C-Band: 3.4-4.2 GHz
Polarization Linear; horizontal and vertical, Circular; with optional dielectric plate
f/D Range .32 to .45
VSWR 1.25 to 1
Cross Pol. Isolation 35 dB
RF Ports WR 229 Compatible
Power requirements +5VDC and TTL Logic Pulse
Temperature Range -50° F to + 175° F
Size 6.5" diameter x 8.13"
Weight 2.7 lbs.
Warranty 2 years
