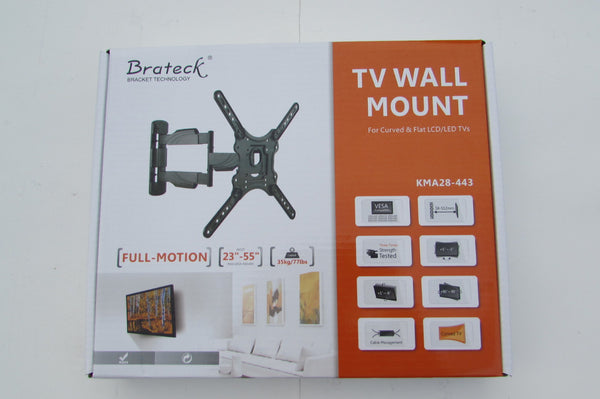

Product Image Brateck Articulating Tilt Swivel LED Curved & Flat LCD Plasma TV Monitor Wall Mount Bracket 23" - 55"

Brateck Articulating Tilt Swivel LED Curved & Flat LCD Plasma TV Monitor Wall Mount Bracket 23" - 55"

$49.95


!IMPORTANT!

Please check VESA (mounting holes behind YOUR TV), stud spacing, possible blocked cable/input and TV weight prior to making purchase decision to determine whether this TV wall mount fits your TV and the installation application.

DESCRIPTION:

The KMA28-443 is a full-motion wall mount for most 23"-55" flat panel TVs up to 35kg/77lbs. The arm can be stretched up to 503mm for a full range of movement- you can be easy to tilt, extend, fold and swivel your TV and any viewing angle whatever you wanted. The wall plate cover of TV mount and cable hidden system looked more luxury and nice, also made the TV cable behind your TV neatly. Its built-in level adjustment offers 5° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 400x400.

FEATURES

●Snap-in VESA plate makes installations easier
●Free-tilting design for multiple monitor viewing angles
●Swiveling arm(s) offer(s) maximum viewing flexibility
●Built-in level adjustment ensures perfect positioning
●Cable management keeps everything organized



SPECIFICATIONS



By Function: Full motion
Product Category: TV wall mount
Rank: Standard Series
Mounting Hole Pattern : Standard VESA
Material:         Steel, Plastic
Metal Sheet Thickness: Wall panel 2.5mm,Panel 1.5mm,Pipe 1.2mm (Wall panel 0.098",Panel 0.059",Pipe 0.047")
Pipe Size: 40x20x1.2mm (1.6"x0.79"x0.047")
Surface Finish: Powder coating
Color: Black
Product Size With Open Position: 512x435x435mm (20.2"x17.1"x17.1")
Fit Screen Size: 23"-55"
Installation: Solid wall, Single Stud
Rated Load: 35kg (77lbs)
Strength Tested: 3 times approved
Max. VESA: 400x400mm
VESA Compatible: 100x100,100x150,200x100,200x200,300x200,300x300,400x200,400x300,400x400
Tilt Range: +5°~-8°
Screen Level: +5°~-5°
Swivel Range: +90°~-90°
Profile: 58-512mm (2.3"-20.2")
Bubble Level mount: NO
Anti-theft: NO
Cable Management: YES
Wall Plate Type: NO
Panel Type: YES
AV Component Shelf: NO
Screen Freely Tilting: NO
Freely Height Adjustable: NO
Motorized: NO
Fit Curved TV: YES
Instruction Manual Included: Yes
