Product Image Brateck Steel Full-motion TV Wall Mount 13"-42" 20kg/44lbs

Brateck Steel Full-motion TV Wall Mount 13"-42" 20kg/44lbs


For most 13"-42" LED, LCD Flat Panel TVs

The LDA21-223 is a full-motion wall mount for most 13''-42'' LED, LCD flat panel TVs up to 20Kgs/44lbs. It allows smooth, effortless tilt motion that makes it easy to reduce glare and find the perfect TV angle at any height. Full motion allows maximum flexibility — extend, tilt and swivel your TV up to 360mm from the wall in every direction for easy viewing from any seat in a room. This pre-assembled arm comes complete with cable clips and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 200x200.


Product Name: TV wall mount
By Rank: Economy Series
By Function: Full motion
By Mounting Pattern: Standard VESA
Material: Steel, Plastic,Metal
Thickness: Wall Panel 2.5mm;connection 2mm (Wall Panel 0.098";connection 0.079")
Pipe Size: 30x15x1.5mm,25x15x1.5mm (1.2"x0.59"x0.059",0.98"x0.59"x0.059")
Surface Finish: Powder coating
Available Color: Black

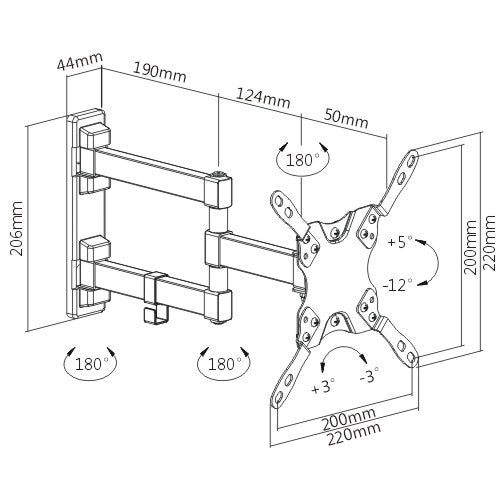

Product Size With Open Position: 364x220x220mm (14.3"x8.7"x8.7")
Fit Screen Size: 13"-42"
Installation: Solid wall, Single Stud
Rated Load: 20kg (44lbs)
Strength tested: 2 times approved
Max.Hole Pattern: 200x200
VESA: 75x75,100x100,200x100,200x200
Tilt: +5°~-12°
Swivel: +90°~-90°
Level Adjustment: +3°~-3°
Profile: 60-364mm (2.4"-14.3")
Bubble Level: No
Anti-theft: No
Cable Management: Yes
Wall separated: No
Panel separated: Yes
AV Component Mount: No
Freely Tilting: Yes
Motorized: No
User Manual : Yes
