!IMPORTANT!
Please check VESA (mounting holes behind YOUR TV), stud spacing, possible blocked cable/input and TV weight prior to making purchase decision to determine whether this TV wall mount fits your TV and the installation application.
DESCRIPTION
The classic model LCD-412 is designed to fit any 13’’-27’’ Flat Panel TV up to 15kgs/33lbs. Freely tilting allows easy TV angle adjustment of 30° up and down. 40°swivel for maximum viewing flexibility. Strength has been tested for a minimum of three times its stated load capacity. VESA compatible with75x75, 100x100.
FEATURES
●Free-tilting design for multiple monitor viewing angles
●Swiveling arm(s) offer(s) maximum viewing flexibility
| By Function: | Full Motion |
| Product Category: | TV wall mount |
| Rank: | Standard Series |
| Mounting Hole Pattern : | Standard VESA |
| Material: | Steel |
| Color: | Black |

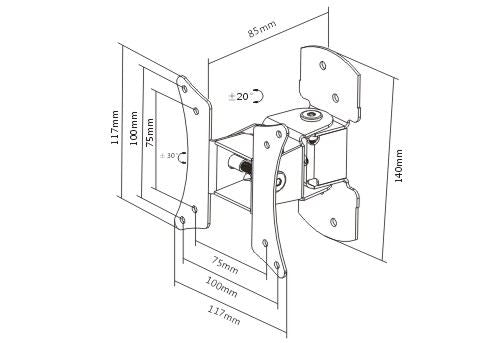

| Product Size With Open Position: | 85x140X117mm (3.3"x5.5"X4.6") |
| Fit Screen Size: | 13"-27" |
| Installation: | Solid wall, Single Stud |
| Rated Load: | 15kg (33lbs) |
| Strength Tested: | 3 times approved |
| Max. VESA: | 100x100 |
| VESA Compatible: | 75x75,100x100 |
| Tilt Range: | -30°~+30° |
| Swivel Range: | -45°~+45° |
| Profile: | 85mm (3.3") |
| Anti-theft: | No |
| Cable Management: | No |
| Patent: | No |
