Description
Easy to use and install, the popular model PLB-33M is designed to fit any 32''-55" curved & flat panel TVs up to 75kg/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.
Features
1.Easy to use and install, the popular model plb-33m is designed to fit any 32''-55" curved & flat panel tvs up to 75kg/165lbs.2.Mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience.
3.Integrated bubble level is included for easy installation alignment.
4.Easy-grip knobs for quick tilt and lock
5.Open architecutre provides increased ventilation and easier access to wires
6.VESA Compatible: 200x200,300x300,400x200,400x400
Specifications
By Function: Tilting
Product Category: TV wall mount
Rank: Standard Series
Mounting Hole Pattern : Universal
Material: Steel
Color: Black

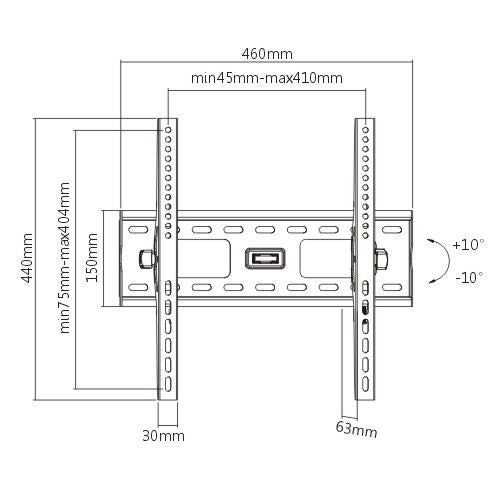

Product Size With Open Position: 63X460X440mm (2.5"X18.1"X17.3")
Fit Screen Size: 32"-55"
Installation: Solid wall, Double Stud
Rated Load: 75kg (165lbs)
Strength Tested: 3 times approved
Max. VESA: 410 x 404mm
Tilt Range: -10°～+10°
Profile: 63mm (2.5")
Screen Rotation: No
Bubble Level mount: Assembly
Fit Curved TV: Yes
