DESCRIPTION

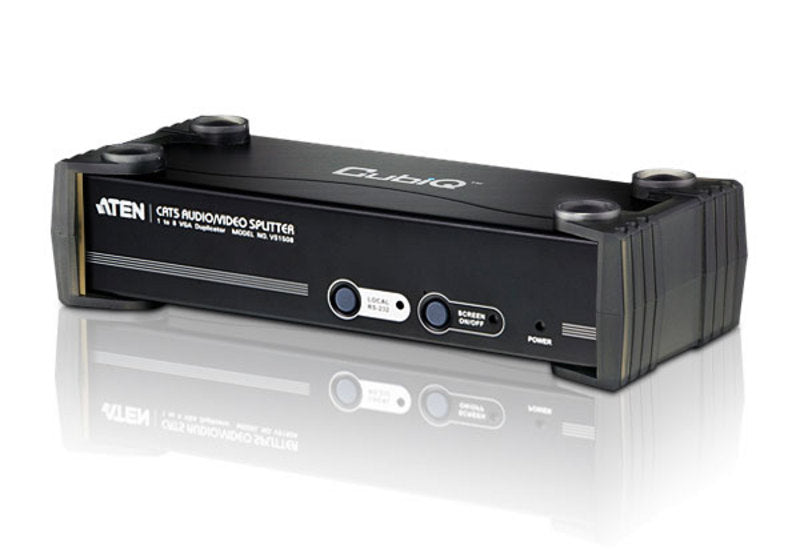

The ATEN VS1508 Cat 5 Audio/Video Splitter is a cost-effective and efficient way to send high quality audio and video content to multiple displays up to 150 m (500 ft) away from a single input source
Cascadable to three levels, the VS1508 can support thousands of displays when combined in an installation with ATEN repeaters. Incorporating RS-232 connectivity so serial devices such as touchscreens can be included in the installation, the VS1508 is ideal for any installation that requires multimedia content to be delivered to multiple destinations.
IDEAL FOR:
- In-store or tradeshow digital signage
- Broadcasting information to public locations
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
FEATURES:
- One video input to 8 video outputs
- Cascadable to three levels - provides up to thousands of video signals when combined in an installation with ATEN repeaters*
- Audio and serial enabled
- Uses Cat 5e (or higher) cable to extend displays up to 150 m
- High quality video - supports 1920 x 1200 @ 60Hz
- Two gain control modes for sharpest picture quality -adjustable by OSD*
- *When combined in an installation with ATEN VB552 (VGA Over Cat5 Repeater + Audio) can extend displays up to 450 m
- Group screens off/on function
- Provides two RS-232 channels for selection
- Follows VESA FDMI mount standard
- Package Contents: 1x VS1508 Cat 5 Audio/Video Splitter - 1x VGA/Audio Cable (1.8 m) - 1x Power Adapter - 1x User Guide

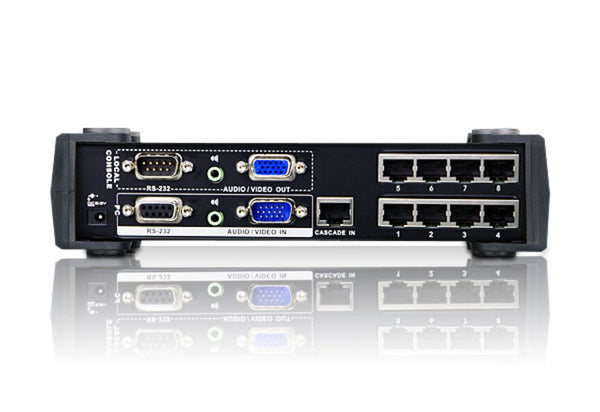

SPECIFICATIONS:
- RS-232 1 x DB-9 Female (Black) - 1 x DB-9 Male (Black)
- Unit to Unit 8 x RJ-45 Female
- Cascade In 1 x RJ-45 Female
- Power 1 x DC Jack
- Switches: Local RS-232 Port 1 x Pushbutton - Group Screen On / Off 1 x Pushbutton
- LEDs: Power 1 (Orange) - Local RS-232 Port 1 (Green) - Group Screen On / Off 1 (Green)
- Video: 1920x1200@60Hz at 30m; - 1600x1200@60Hz at 150m; - 1280x1024@60Hz at 200m
- Cable Distance 150 m
- Power Consumption DC5.3V, 6.9W
- Operating Temp. 0-50°C
- Storage Temp. -20-60°C
- Humidity 0-80% RH, Non-condensing
- Weight: 0.76 kg
- Dimensions: (L x W x H) 21.00 x 8.80 x 5.55 cm
