DESCRIPTION

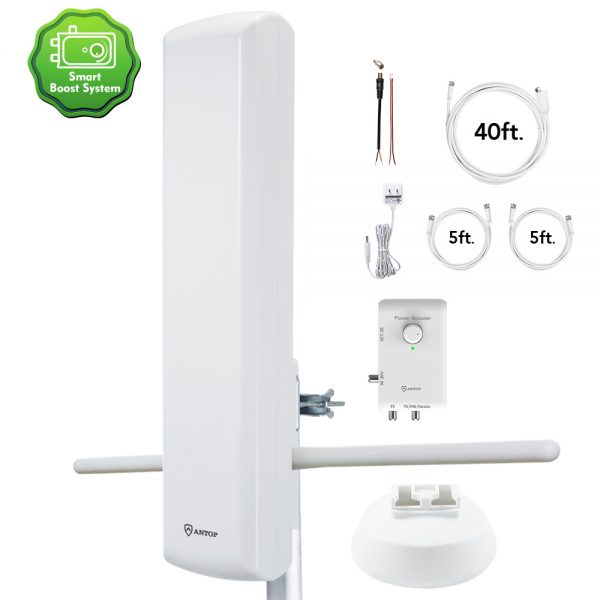

The ANTOP HD Smart Panel design is aesthetically pleasing and suitable to match a wide range of home exterior styles. The Smart Boost System adjust the antenna's reception power with a simple turn of a dial and allows simultaneous connection to a second device: FM stereo, a second TV, or any OTA-Ready streaming device or projector. The number of TV channels and programs that you can receive for FREE depends on the amount of over-the-air broadcasters in your area. With this ANTOP antenna, there is no monthly fees or TV subscriptions. Just plug into a TV, scan the channels, and then enjoy your TV shows!
SPECIFICATIONS
- Features ANTOP’s exclusive Smart Boost System
- The weather resistant UV coating holds up to the elements to allows outdoor mounting
- The included VHF Enhancer Rods strengthen VHF reception.
- 85-mile signal range
- Connects TWO devices simultaneously

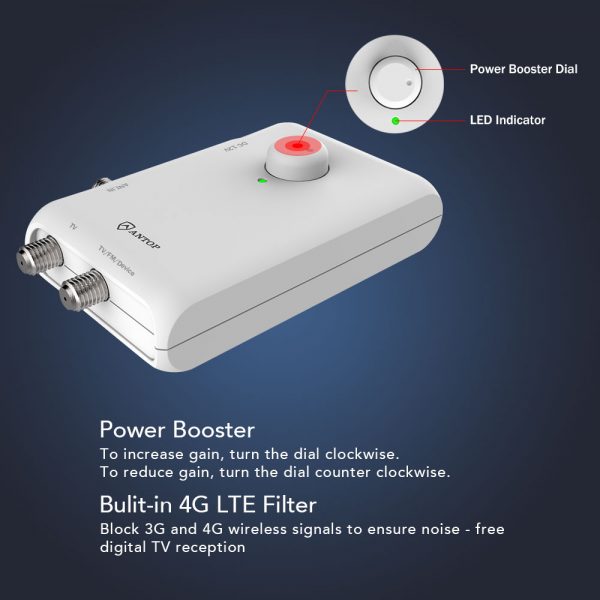

- Built-in adjustment dial delivers optimal antenna reception
- Built-in 4G LTE Filter for less picture pixelation
- Multi-Directional reception pattern
- Includes integrated FM antenna
- Compact, stylish and sleek design
- Frequency Range: 87.5-230MHz, 470-700MHz
- Insertion Loss: 4.8d
- Power In: DC 12V
- Power Out: DC 11.7V
- Impedance: 75Ω
- Regulation: 0~15dB
- Reception Range: 60-85 miles
- Receiving Range: VHF/UHF
- Gain: 7dB-22dB
- Max Output level: 100dBuV Max
- Wind Figures: 6 mile/h = 0.39N ; 10 mile/h = 1.41N
