DESCRIPTION

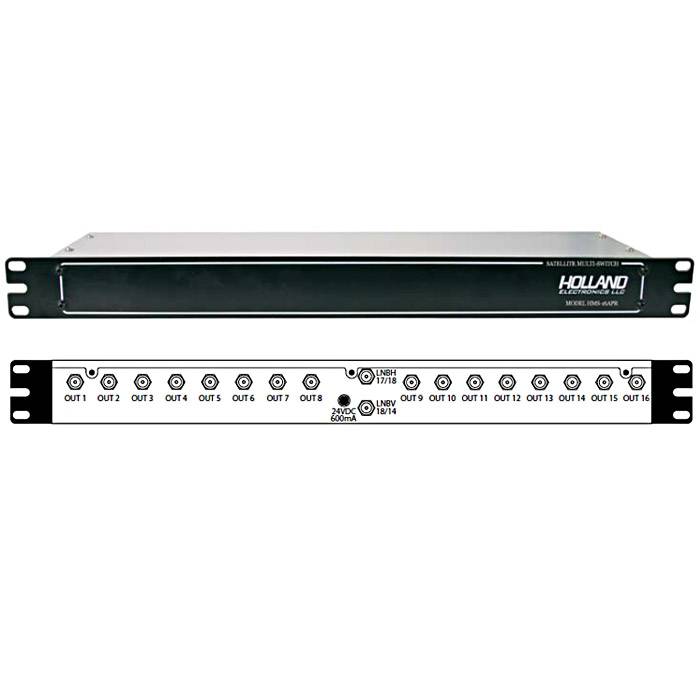

The HMS-16ARK is a rack-mounted multi-switch specifically designed for head-end applications. The switch generates the voltage required for powering a dual LNB (13 & 18 volts). It also provides amplification to help overcome the insertion loss of the 16 outputs. Designed to be included in the Holland Modular Head-End System.
SPECIFICATIONS
- Low distortion amplification for when you need it
- Provides low noise block powering for your convenience
- High isolation to avoid inference
- Highly reliable, because you need to be able to depend on your multi-switch
- Input Frequency: 950 - 2150 MHz
- LNB Power: 13V, 18V
- Insertion Loss (Max): -4 dB 950-2150 MHz
- Isolation: 25 dB
- Switching Voltage (RX to Switch): 13/18VDC
- Connectors: Female
- Power Requirements: 24VDC, 600 mA Center + (AC to DC Transformer Included)
- Box Contents: Holland Rack Mounted 16 Output Multi-Switch - AC to DC Transformer
