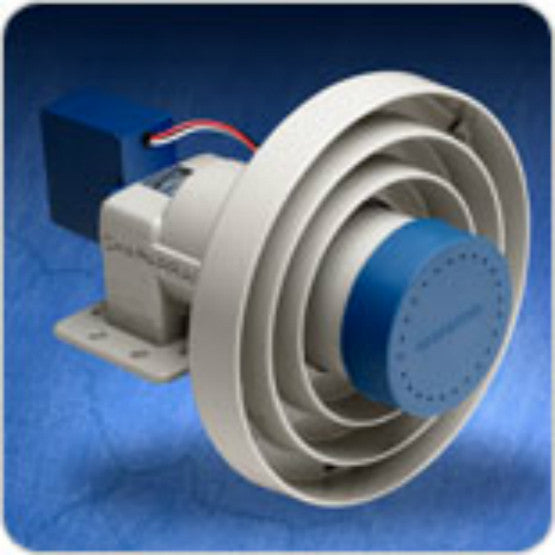

Chaparral PR1E - Adjustable scalar feed horn with servo motor.
Specification
| Part Number | 11-4221-1 with elbow 11-6870-62 without elbow |
| Frequency Range | C-Band: 3.4-4.2 GHz |
| Polarization | Linear; horizontal and vertical, Circular; with optional dielectric plate |
| f/D Range | .32 to .45 |
| VSWR | 1.25 to 1 |
| Cross Pol. Isolation | 35 dB |
| RF Ports | WR 229 Compatible |
| Power requirements | +5VDC and TTL Logic Pulse |
| Temperature Range | -50° F to + 175° F |
| Size | 6.5" diameter x 8.13" |
| Weight | 2.7 lbs. |
| Warranty | 2 years |
