Product Image Edision OS Mini 4K UHD DVB S2X E2 Linux Satellite Receiver FTA Free to air

Edision OS Mini 4K UHD DVB S2X E2 Linux Satellite Receiver FTA Free to air

$229.99


The OS MINI 4K is a UHD 4K SAT Receiver H265 / HEVC and comes equipped with a Multi Stream Tuner & Blindscan support. The OS MINI 4K offers you S2X tuner, HDMI output up to 2160p, 2 x USB, a LAN input and a 2in1 remote control for the receiver and your TV. With an ultra high definition resolution of up to 2160p and the powerful dual core ARM 1.5GHz processor, it will be a loyal and fast TV companion!

Hardware and performance of the Linux SAT receiver
Under the hood of the Linux combo receiver from Edision there is a dual-core ARM 1.5 GHz processor, 8 GB eMMC flash memory and 1 GB DDR4 RAM 2400 MHz.

The OS MINI 4K is a UHD 4K SAT Receiver H265 / HEVC and comes equipped with a Multi Stream Tuner & Blindscan support. The OS MINI 4K offers you S2X tuner, HDMI output up to 2160p, 2 x USB, a LAN input and a 2in1 remote control for the receiver and your TV. With an ultra high definition resolution of up to 2160p and the powerful dual core ARM 1.5GHz processor, it will be a loyal and fast TV companion!

Hardware and performance of the Linux SAT receiver
Under the hood of the Linux combo receiver from Edision there is a dual-core ARM 1.5 GHz processor, 8 GB eMMC flash memory and 1 GB DDR4 RAM 2400 MHz. Through this integrated hardware it brings Edision OS Mini on switching times of less than one second - at a comparatively low power consumption.

Technical specifications:
4K UHD DVB-S2X
E2 Linux
H.265 / HEVC
Dual core ARM 1.5 GHz
8GB eMMC Flash
1GB DDR4 RAM

Features:
Multi Stream T2MI
Blind scan support
Web browser with HbbTV
Free internet streamingTV and radio
Unlimited channel memories
10/100 Mbps Ethernet
Channel change in less than a second
Extensive / programmable EPG
Expandable with add-ons & plug-ins
Support of multiple bouquet lists
Multilingual OSD, skin support
Channel search: fully automatic or manual
Time shift function and various timers
Fast Teletext & OSD and VBI subtitle support
DiSEqC 1.0, 1.1, 1.2 and 1.3 (USALS)
Support SCR / CSS (EN50494 & EN50607)
Power consumption of less than 0.5 watts in low-power standby mode.
Very sensitive tuner for receiving even weak signal channels.

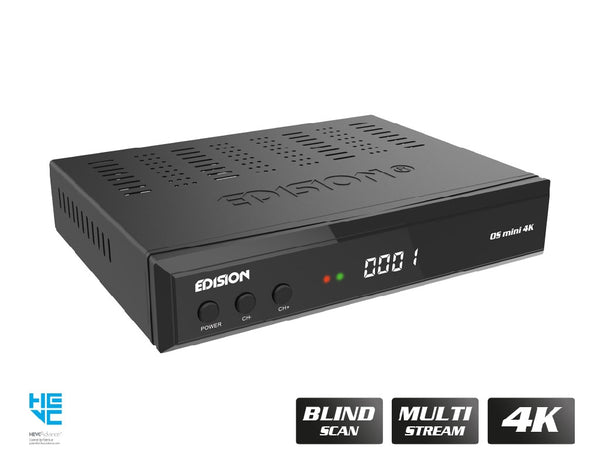

Front:
Display: LED (standby, recording)
Display buttons: Power, Channel - / +

Connections:
1x satellite IF input
1x HDMI 2.0a
1x S / PDIF (optical audio output)
1x smart card slot
1x Ethernet connection
2x USB 2.0
1x Jack to RS232
1x Jack to IR
1x DC connection (for external power supply)

General:
Housing: 180mm case
Dimensions: (W x H x D): 180x35x140 (mm)
Weight: 0.7 kg
Color: Black
Guarantee: 2 years

Scope of delivery:
1x Edision OS Mini 4K (DVB-S2X) satellite receiver
1x remote control
1x power supply 12V 1A
1x Jack to IR connection cable
1x USB extension cable
1x Start Guide EN / DE / GR
2x AAA batteries
